PUSH PULL TOGGLE CLAMPS - COMPACT PUSH-PULL STRAIGHT BASE SERIES

This series is designed for mounting both horizontal and vertical side, As the mounting area is straight these clamps allow users to save the precious work surface for other uses. Clamp runs with specially designed pre-lubricated bushes for the long life cycle. Silicon rubber grip having large grip surface with oil and heat resistance.

  • Material - Steel

  • Surface Finish - Electro Zinc-Plated

  • Hand Grip - Silicon Rubber

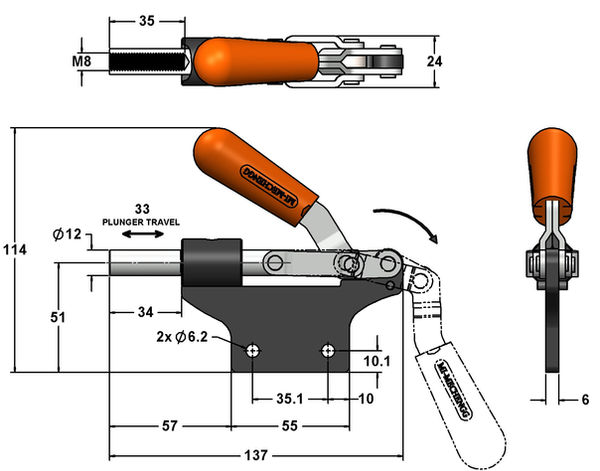

MI-CPSB-300

 PUSH PULL TOGGLE CLAMPS

Weight: 0.385 Kgs

Holding Capacity - 300 Kg

MI-CPSB-300
VIDEO

MI-CPSB-400

 PUSH PULL TOGGLE CLAMPS

Weight: 0.680 Kgs

Holding Capacity - 400 Kg

VIDEO
MI-CPSB-400

MI-CPSB-700

 PUSH PULL TOGGLE CLAMPS

Weight: 0.700 Kgs

Holding Capacity - 1.500 Kg

VIDEO
MI-CPSB-700
